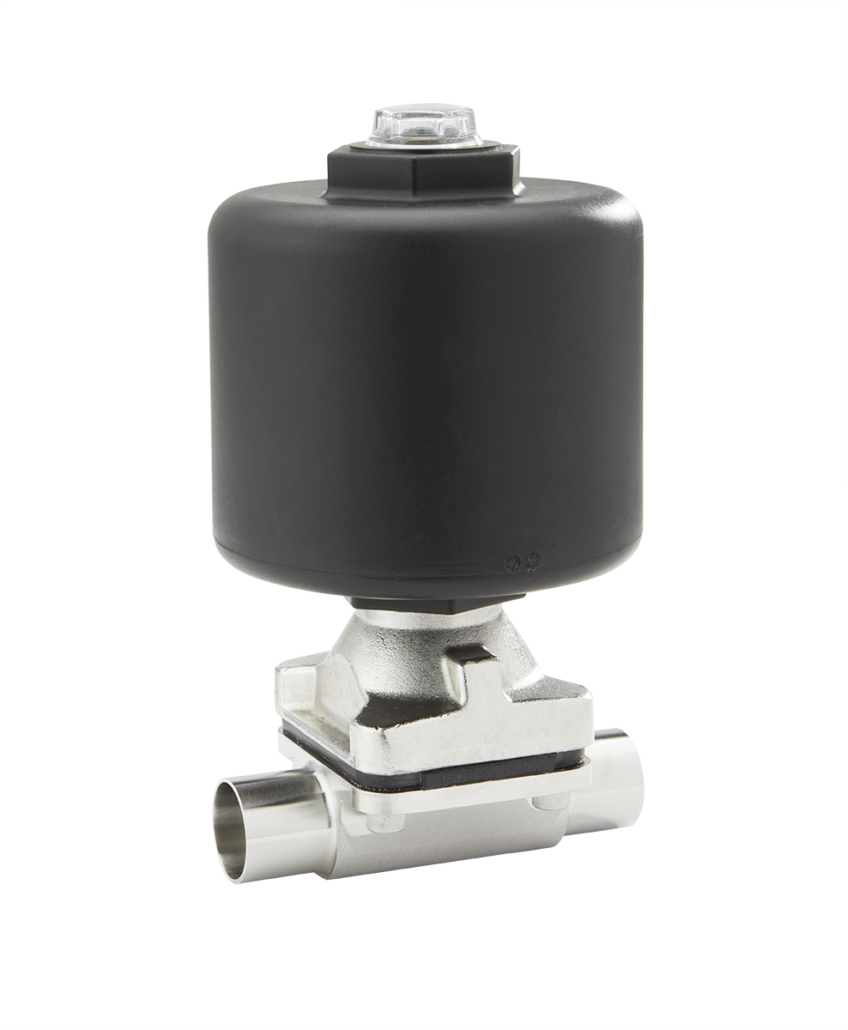

Pneumatic Forged 2-Way Valve
Maximum Operating Pressure at 100°F (38°C):
- ¼” – 1” = 200 psi (13,8 bar)
- 1 ½” – 2” = 175 psi (12,1 bar)
- 2 ½” – 4” = 150 psi (10,3 bar)
Max Pressure at Maximum Temperature 300°F (150°C)
- 50 psi (3,45 bar) all Sizes
Minimum Temperature:
- -14°F (-26°C)
- Body: Forged EN 10272:2000 GR 1.4435 316L Stainless Steel with 20Ra manual finishing and Electropolishing.
- End Connection type: All forged 2-way valves have integral tri-clamp or tube end connections – no welding required during the manufacturing process. The pneumatic actuators easily Actuator flip for function change.
- Interior Surface Finish: Wetted: ASME BPE SF5, 20 Ra μin (0,5 Ra μm), Electropolish.
- ElectroPolish Finish: A process that eliminates the peaks of a mechanically polished surface as well as any minor imperfections, resulting in a smooth and hygienic and easy-to-clean level surface.
- Exterior surface finish: 63 Ra μin (1,6 Ra μm)
- Diaphragm: all diaphragms are FDA, USP <88> Class VI and <87> compliant and ADI-free.
All diaphragms have TFM/ EPDM backings that handle temperature ranges from -14°F to 266°F (-26°C to 130°C) 300°F (150°C) at 50 psig (3,45 barg) max during SIP. This hybrid backing provides superior chemical resistance that is virtually impermeable. This hybrid backing also provides excellent resilience and sealing properties, resulting in enhanced performance and durability for the valve in various operating conditions.
Upon purchase you will receive a Steriflow Unicert Certificate of Compliance which will include the following:
- Material, including MTR’s
- Surface Finish
- FDA/USP <88>, <87> Class VI
- ADI/TSE Free cert available upon request
- Your specific order’s individual valve Serial/Suffix numbers and wetted component Heat numbers. MTR’s for each Heat number will follow on attached pages. The Serial numbers and Heat numbers are directly traceable to each individual valve.
- Valve Sizing information with quotation
- Signed valve Leak Test report upon request
